Mô tả chi tiết

Tên sản phẩm

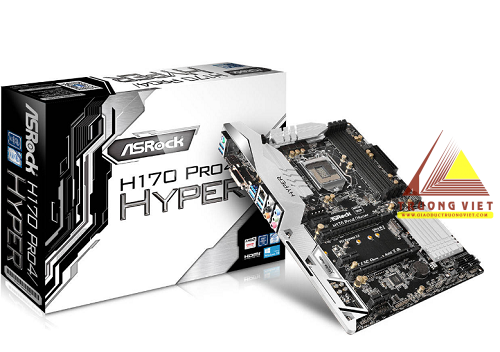

Asrock H170 Pro4/Hyper

Hãng sản xuất

Asrock

Chủng loại

H170 Pro4/Hyper

CPU hỗ trợ

- Supports 6^th Generation Intel^® Core™ i7/i5/i3/Pentium^®/Celeron^®Processors (Socket 1151)

Chipset

- Intel^® H170

Bộ nhớ trong

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode) *
- Max. capacity of system memory: 64GB*

VGA onboard

- Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^®InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 510/530*
- Pixel Shader 5.0, DirectX 12
- Max. shared memory 1024MB**

Âm thanh

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support

Khe mở rộng

- 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*

- 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

- Supports AMD Quad CrossFireX™ and CrossFireX™

Chuẩn lưu trữ

- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

- 1 x SATA Express 10 Gb/s Connector*

- 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Cổng giao tiếp trước và sau

- 1 x PS/2 Mouse/Keyboard Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 6 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Công nghệ tích hợp

•   Supports 6^th Generation Intel^® Core™ Processors (Socket 1151)
•   Digi Power, 10 Power Phase Design
•   Supports Dual Channel DDR4 2133, DDR4 Non-Z OC
•   Hyper BCLK Engine Integrated
•   2 PCIe 3.0 x16, 3 PCIe 3.0 x1
•   AMD Quad CrossFireX™, CrossFireX™
•   Graphics Output Options: DVI-D, HDMI
•   7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
•   1 SATA Express, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 8 USB 3.0 (2 Front, 6 Rear)

Kích thước

- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

Phụ kiện đi kèm

- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables

- 1 x Screw for M.2 Socket
